Product Overview

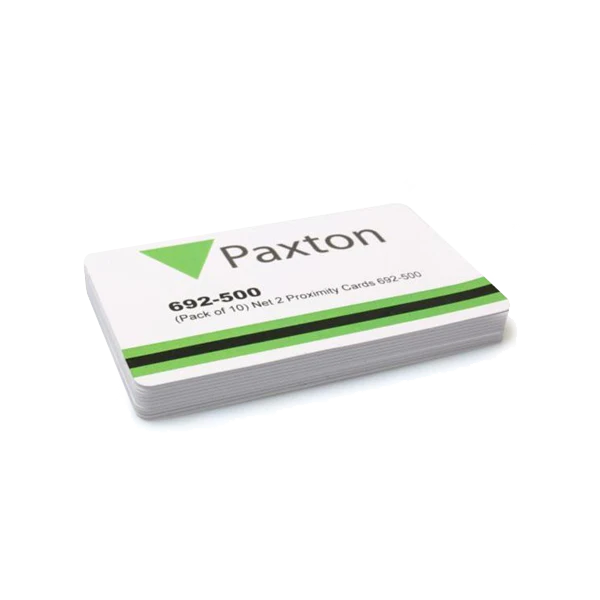

The Paxton 692-500 Net2 Proximity ISO Cards are access control cards designed for use with the Paxton Net2 system. Supplied in a pack of 10, these printable ISO-format proximity cards use Paxton’s Hitag2 technology with proprietary encoding and are supplied without a magnetic stripe.
For the Paxton 692-500, the cards come from Paxton already encoded as Paxton Net2 proximity credentials. You do not need to encode them yourself with a card encoder. What you do need to do is enrol each card against a user in the Net2 software before it can be used for access
Paxton Genuine Products
Genuine Paxton chips.
Specifications
Manufacturer: Paxton Access
Paxton sales code: 692-500
Product type: Proximity access control card
System: Paxton Net2
Technology: Hitag2 with proprietary Paxton encoding
Card format: ISO card
Magnetic stripe: No
Printable: Yes, using a suitable plastic card printer
Pack quantity: 10 cards
How do these cards work?
The process is essentially:
1. The card arrives already encoded
Each 692-500 contains the electronic proximity credential required by the Paxton system. Paxton’s Net2 configuration documentation refers to Paxton tokens as having their own encoded/encrypted token number. You are not buying a blank RFID card that needs to be programmed before use.
2. You enrol the card in Net2
An administrator creates or opens the person’s record in the Net2 PC software.
The card is then presented to a Net2 desktop reader connected to the computer. The desktop reader reads the card’s token number and allows it to be associated with that user. Paxton specifically describes its desktop reader as a device for adding tokens to Net2.
So, for example:
Card 12345678 ā John Smith ā permitted through Main Entrance + Office, MondayāFriday
The access permissions themselves are managed in Net2; you aren’t writing those permissions onto the 692-500 card.
3. The user presents the card at a door
When John presents the card to a compatible Paxton reader, the reader authenticates/reads the credential and the Net2 system checks the associated user’s permissions. Access is then granted or denied as appropriate.
Paxton states that these credentials use Hitag2 technology with proprietary encoding, including an authentication exchange between the token and reader
