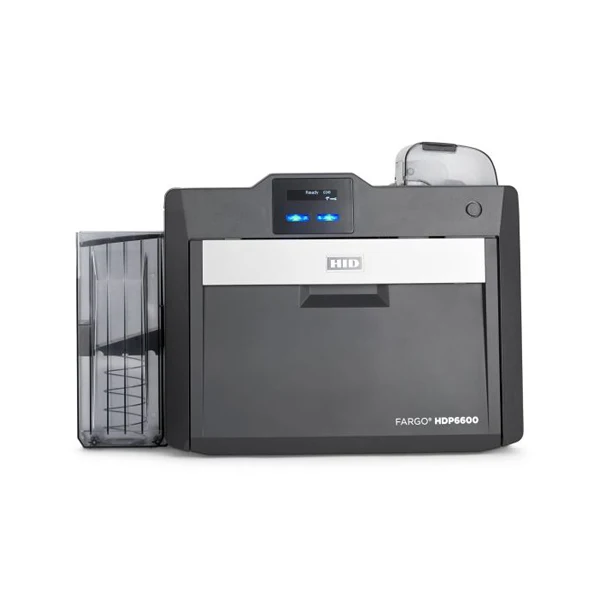

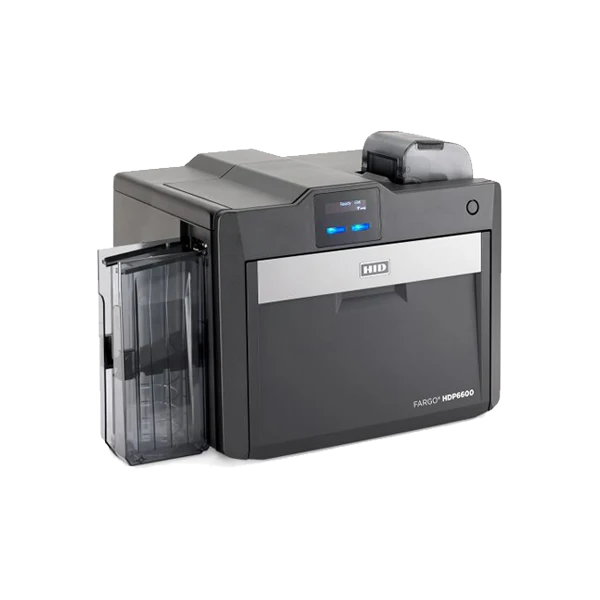

Fargo HDP6600 Card Printer

High-Definition 600 dpi Card Printing

The Fargo HDP6600 delivers 600 dpi print resolution, allowing organisations to produce detailed ID cards with clear photographs, small text, logos and intricate designs.

This higher resolution is particularly useful for staff identification and access control cards where accurate photographs and detailed printed information are important.

The printer supports full-colour printing with over-the-edge coverage, extending the printed design across the card surface.

Retransfer Printing for Smart Cards and Access Control

The HDP6600 uses a retransfer printing process rather than printing directly onto the card.

The card design is first printed onto a transparent film. This film is then transferred onto the card surface using heat and pressure.

This process offers several advantages:

• Over-the-edge printing across the card surface

• Consistent printing on compatible technology cards

• Support for cards with embedded electronic components

• Detailed colour printing on supported card materials

The HDP6600 supports compatible PVC, PET, PETG, composite and polycarbonate cards.

It is particularly relevant to facilities teams producing employee identification cards that also serve as access credentials.

Fast Printing for Higher-Volume ID Card Issuance

The Fargo HDP6600 is designed for organisations producing larger quantities of ID cards.

It offers manufacturer-rated printing speeds of:

• Up to 230 cards per hour using YMCK ribbon and retransfer film

• Up to 126 cards per hour using YMCKK ribbon and retransfer film

These speeds make the HDP6600 suitable for organisations preparing batches of employee ID cards, replacement credentials and new staff identification.

Actual output depends on the card design, ribbon, encoding requirements and printer configuration.

iON Technology for Faster Startup

The Fargo HDP6600 features HID’s iON technology, which allows the printer to reach its operating temperature in under 60 seconds.

This reduces the waiting time before printing and helps facilities teams respond to day-to-day ID card issuance requirements.

The technology is particularly useful in workplaces where printing is carried out at different times throughout the day rather than in one continuous production run.

Optional Smart Card and Access Control Encoding

The HDP6600 supports optional card encoding modules for organisations using electronic identification and access control cards.

Depending on the selected encoder, supported technologies include:

• Magnetic stripe cards

• Contact smart cards

• Contactless smart cards

• Supported HID proximity and iCLASS technologies

• Compatible MIFARE card technologies

These options allow facilities managers to select a printer configuration suited to their identification system.

Please note: Card encoding is optional and is not included with the standard single-sided printer unless specified. Compatibility with existing cards and access control systems must be checked before purchase.

Optional Double-Sided Card Printing

The Fargo HDP6600 supports an optional double-sided printing configuration.

This allows organisations to print both sides of compatible ID cards, providing additional space for photographs, identification details, instructions or other required information.

The standard model described here is single-sided. Double-sided printing requires the relevant printer configuration.

Optional Card Lamination

The HDP6600 can be configured with HID’s LMX lamination system.

Lamination adds a protective layer to compatible printed ID cards, helping protect the printed surface against wear and regular handling.

The optional wasteless lamination system is available in configurations supporting one or two lamination materials.

This is relevant for organisations issuing employee identification cards intended for ongoing daily use.

Lamination hardware and consumables are separate options unless included in a specific package.

Security Features for ID Card Issuance

The Fargo HDP6600 includes security capabilities intended to protect card printing information.

These include AES-256 encryption and resin scramble data protection.

Optional physical locking features are also available for certain card hopper and consumable access configurations.

These features are useful for organisations where control over identification supplies and cardholder information is important.

SmartScreen Display and Connectivity

The HDP6600 includes a SmartScreen graphical OLED control panel, providing printer information and operating status.

USB 2.0 and Ethernet connectivity allow the printer to be connected to a workstation or supported network environment.

The printer also includes a standard 100-card input capacity and a 200-card output hopper, with optional upgrades available for additional input capacity.
