Product details
Product Overview

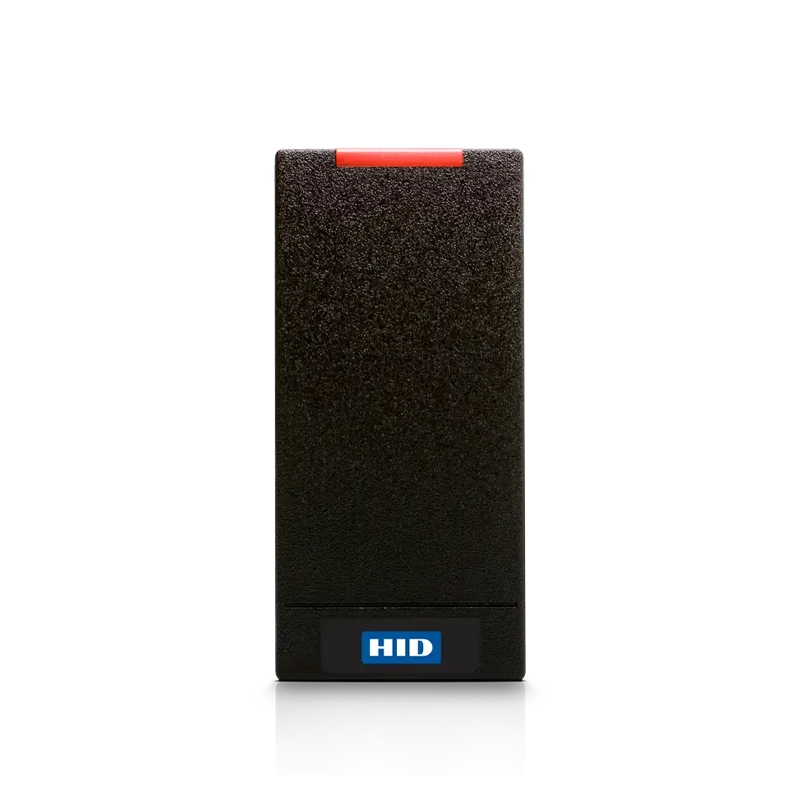

HID iCLASS SE R10 900NTNTEK00000 Card Reader
The HID iCLASS SE R10 900NTNTEK00000 is a compact 13.56 MHz contactless smart card reader for door access control systems.
Designed for installations with limited mounting space, the R10 can be fitted to narrow door frames, mullions and other suitable surfaces. It supports compatible HID smart card credentials and connects to an access control system through a wired interface.
The reader is suitable for organisations managing staff access to offices, workplaces and restricted areas.
Key Features and Benefits
- 13.56 MHz contactless reading: Supports compatible high-frequency smart card credentials.
- Compact design: Narrow housing suitable for door frames and locations with limited mounting space.
- HID credential compatibility: Supports compatible iCLASS Seos, iCLASS SE, standard iCLASS and MIFARE technologies.
- Wiegand interface: Communicates with compatible access control controllers.
- Terminal strip connection: Provides a wired connection for installation.
- SIO technology support: Supports HID Secure Identity Object technology when used with compatible credentials and systems.
- Indoor and outdoor applications: IP55-rated enclosure for suitable installations.
Vanderbilt HID Product
Specifications
| Specification | Details |
|---|---|
| Brand | HID |
| Product family | iCLASS SE |
| Model | R10 |
| Manufacturer part number | 900NTNTEK00000 |
| SKU | HID-6100 |
| Product type | Contactless access control reader |
| Operating frequency | 13.56 MHz |
| Credential technologies | Compatible iCLASS Seos, iCLASS SE, standard iCLASS and MIFARE |
| Communication interface | Wiegand |
| Connection | Terminal strip |
| Operating voltage | 5–16 V DC |
| Dimensions | Approx. 48 × 103 × 23 mm |
| Mounting | Mullion or suitable flat surface |
| Environmental protection | IP55 |
| Manufacturer warranty | Limited lifetime warranty |
